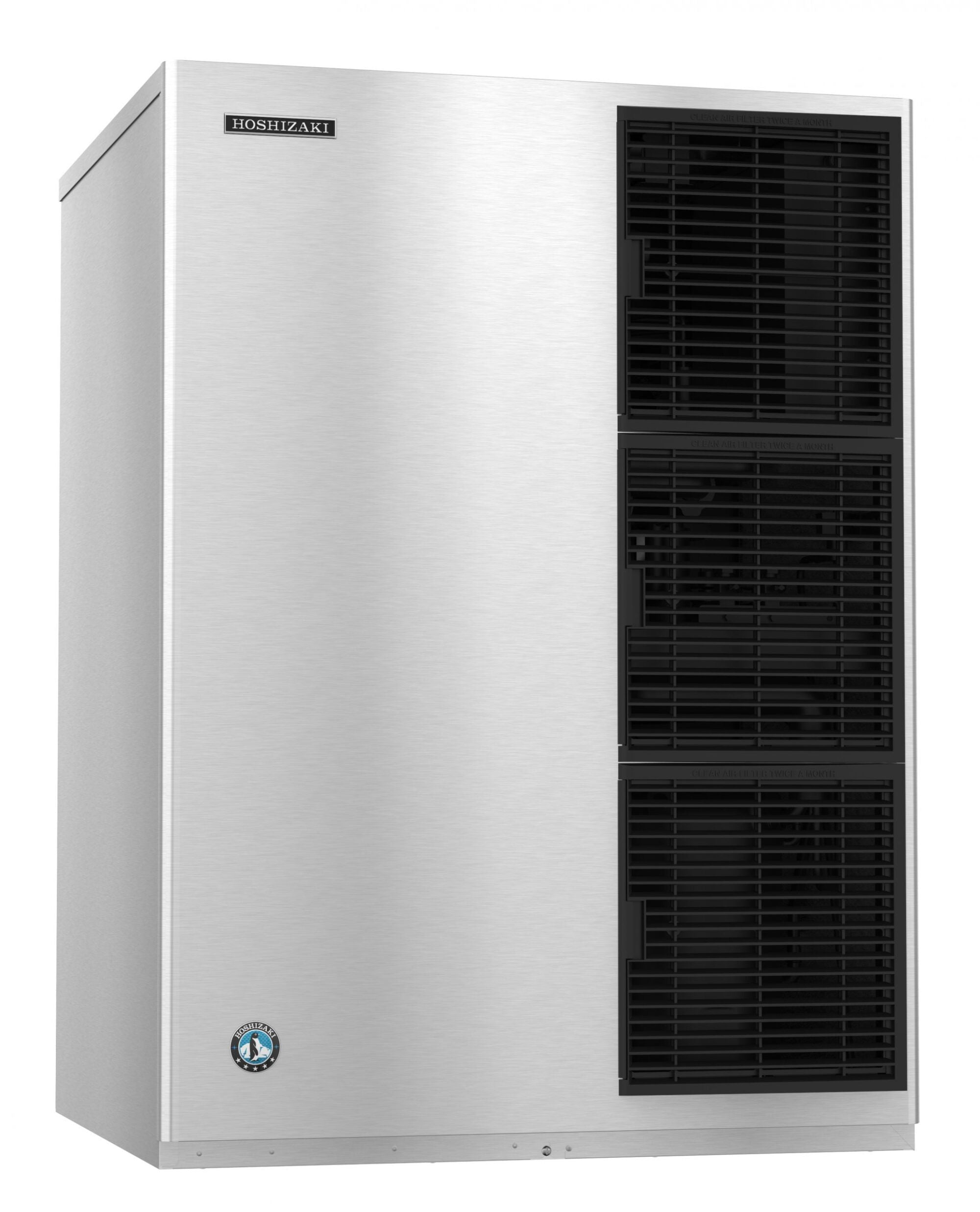

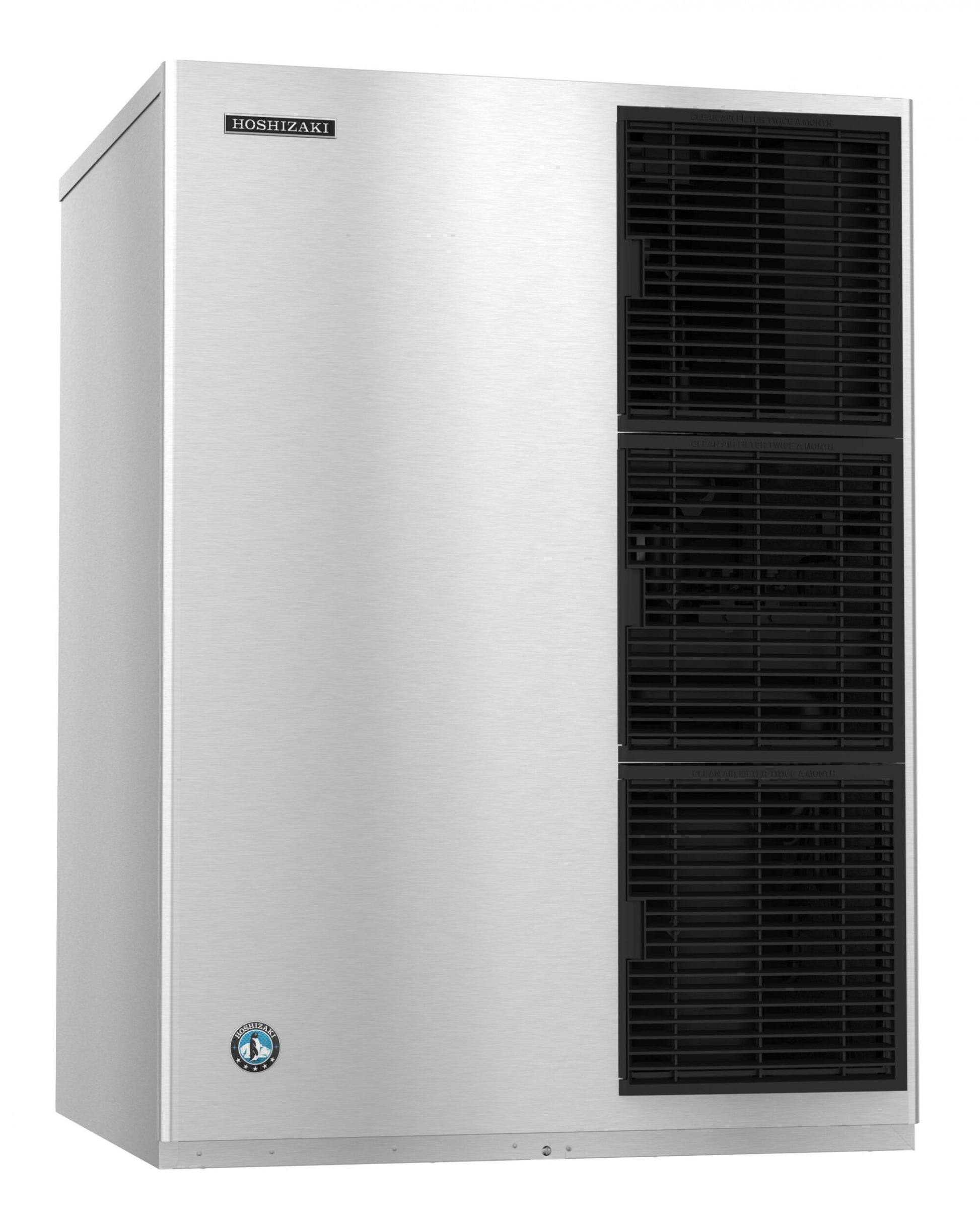

KM-1340MAJ - 1275lbs/day Stackable Modular Crescent Cuber Ice Maker

The KM-1340MAJ is capable of producing approximately 1275 lbs of crescent cubed ice. Hoshizaki’s efficient double-sided KMEdge™ stainless steel evaporators create the unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1340MAJ requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.

• Dimensions: 30″ W x 27-3/8″ D x 41-1/2″ H
• Up to 1275 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces crescent shaped ice cubes
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately: B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
• EverCheck™ alert system
• CycleSaver™ design
• Integrated ultrasonic bin control
• Simple, one-hour cleaning and assisted cleaning process with CleanAssist
• R-404A refrigerant (4 lbs. 10.1 oz. / 2100 g)
• Heat Rejection: 21000 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 187 – 253V
• 13.2 amps (20 Amp Max fuse)
• 4.81 kwh/100 lbs.@ 90/70
• Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included. If neutral is not available transformer kit (HS-5030) is required
• ENERGY STAR® qualified
• Three Years: Parts & Labor warranty on entire machine
Five Years: Parts & Labor warranty on evaporator
